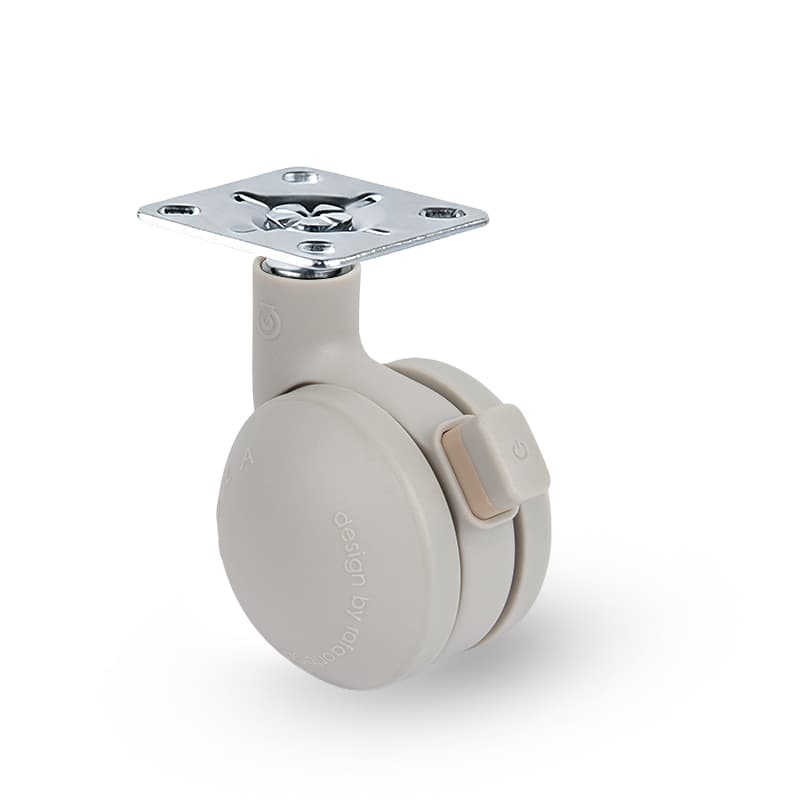

Plate
 | 75 |
|---|---|
 | 74 |
 | 53.5 |
| FITTING | 42x42x2 |
 | 30 |
| BEARING | 〓 |
 | Download File |
| | | FITTING | | BEARING | |
|---|---|---|---|---|---|---|
| 75 | 74 | 53.5 | 42x42x2 | 30 | 〓 | Download File |

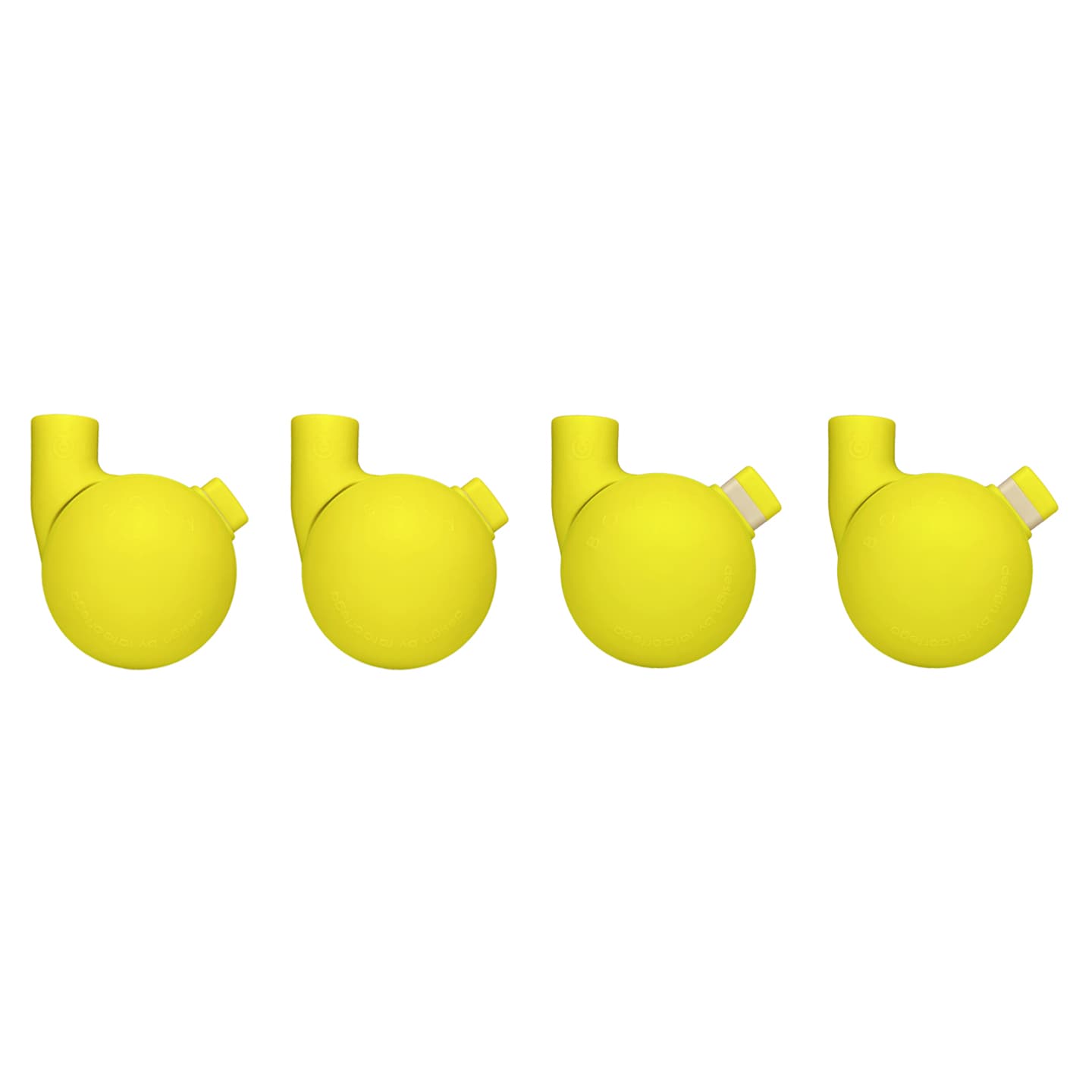

BOLA 50-A
Designer Collection50mm
Key Attributes
Product Diameter
50MM
Material Specification
PA;PU
Application Range
Baby;Home
Product Standard
EN12528
Specifications

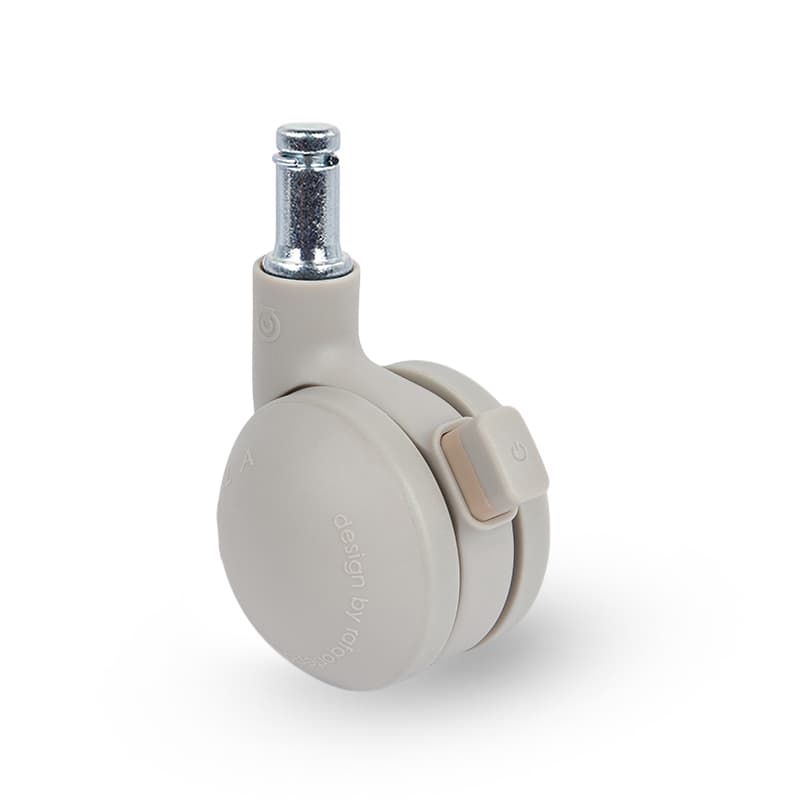

Pin
| 75 |
|---|---|
| 67.5 |
| 53.5 |
| FITTING | Ø11x22 |
| 30 |
| BEARING | 〓 |
| Download File |
| | | FITTING | | BEARING | |
|---|---|---|---|---|---|---|
| 75 | 67.5 | 53.5 | Ø11x22 | 30 | 〓 | Download File |

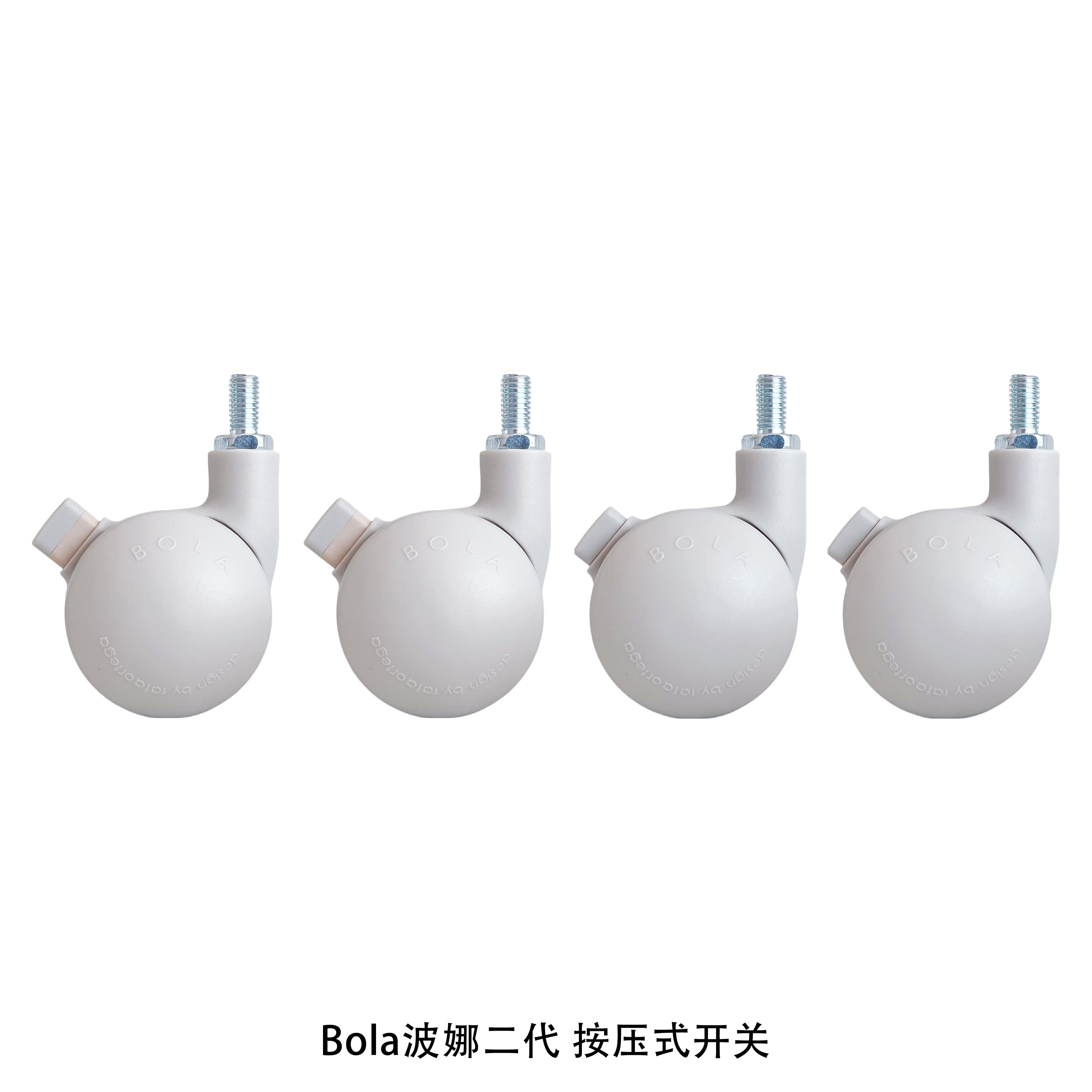

Threaded bolt
| 75 |
|---|---|
| 69 |
| 53.5 |
| FITTING | M10x15 |
| 30 |
| BEARING | 〓 |
| Download File |
| | | FITTING | | BEARING | |
|---|---|---|---|---|---|---|
| 75 | 69 | 53.5 | M10x15 | 30 | 〓 | Download File |
