Plate
 | 75 |
|---|---|
 | 102.5 |
 | 42 |
| FITTING | 47x47x2.5 |
 | 90 |
| BEARING |  |
 | Download File |
| | | FITTING | | BEARING | |
|---|---|---|---|---|---|---|
| 75 | 102.5 | 42 | 47x47x2.5 | 90 | | Download File |
KOO 75
Designer Collection75mm
Key Attributes
Product Diameter
75mm
Material Description
Zinc alloy ; PA;TPU
Application Range
Home;Shop;Lady;Office
Product Standards
EN12528 ANSI/BIFMA X5.1
Resources
Specifications

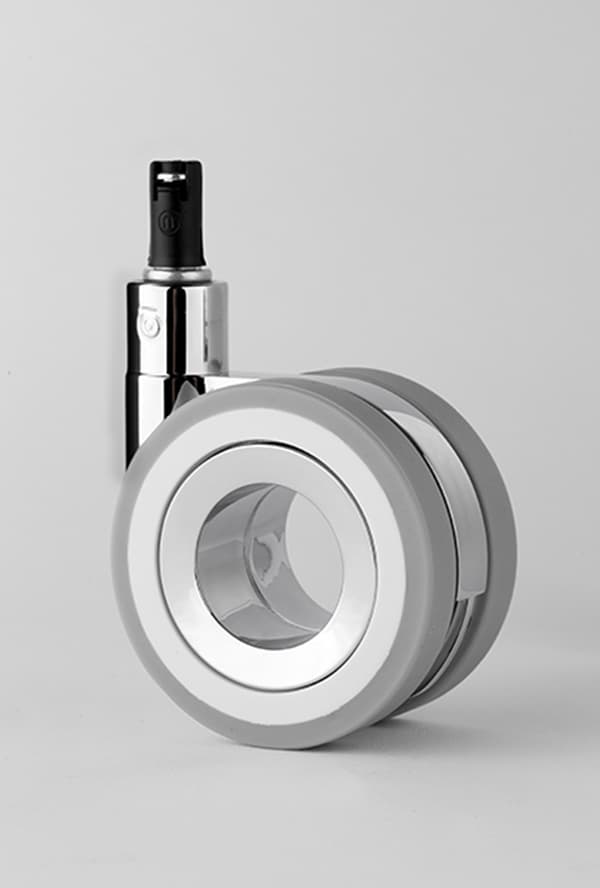

Pin
| 75 |
|---|---|
| 95 |
| 42 |
| FITTING | Ø11x22 |
| 90 |
| BEARING | |
| Download File |
| | | FITTING | | BEARING | |
|---|---|---|---|---|---|---|
| 75 | 95 | 42 | Ø11x22 | 90 | | Download File |

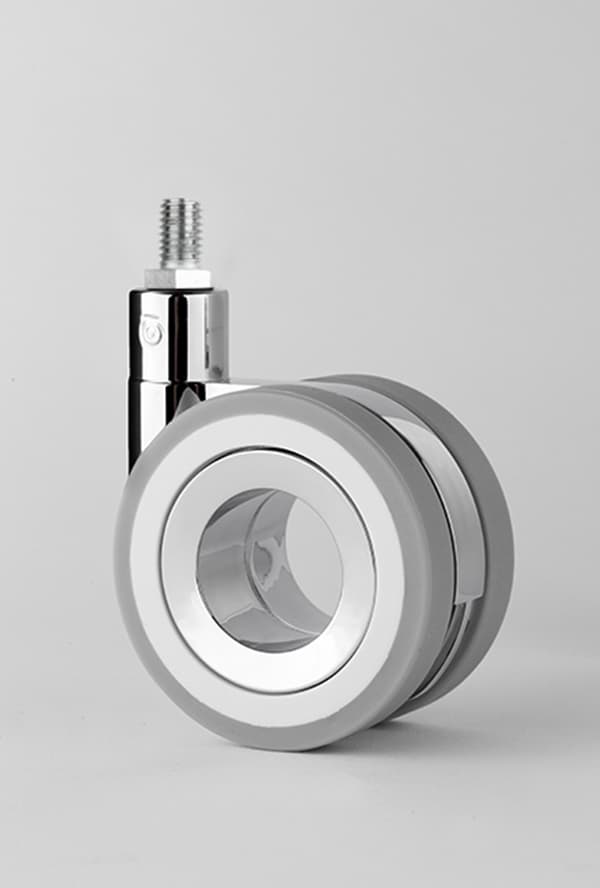

Threaded bolt
| 75 |
|---|---|
| 97 |
| 42 |
| FITTING | M10x15 |
| 90 |
| BEARING | |
| Download File |
| | | FITTING | | BEARING | |
|---|---|---|---|---|---|---|
| 75 | 97 | 42 | M10x15 | 90 | | Download File |
