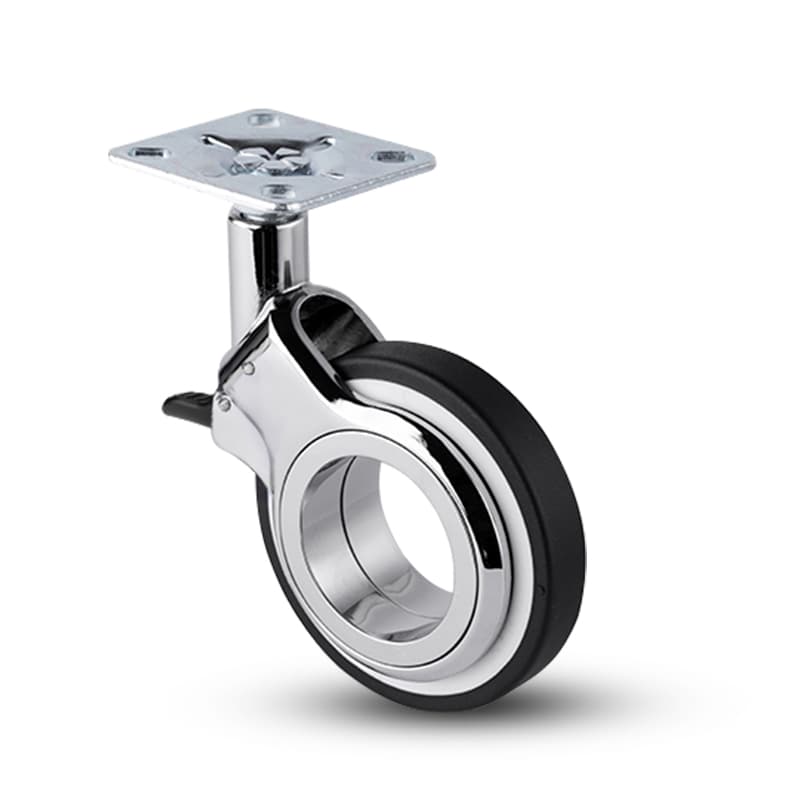

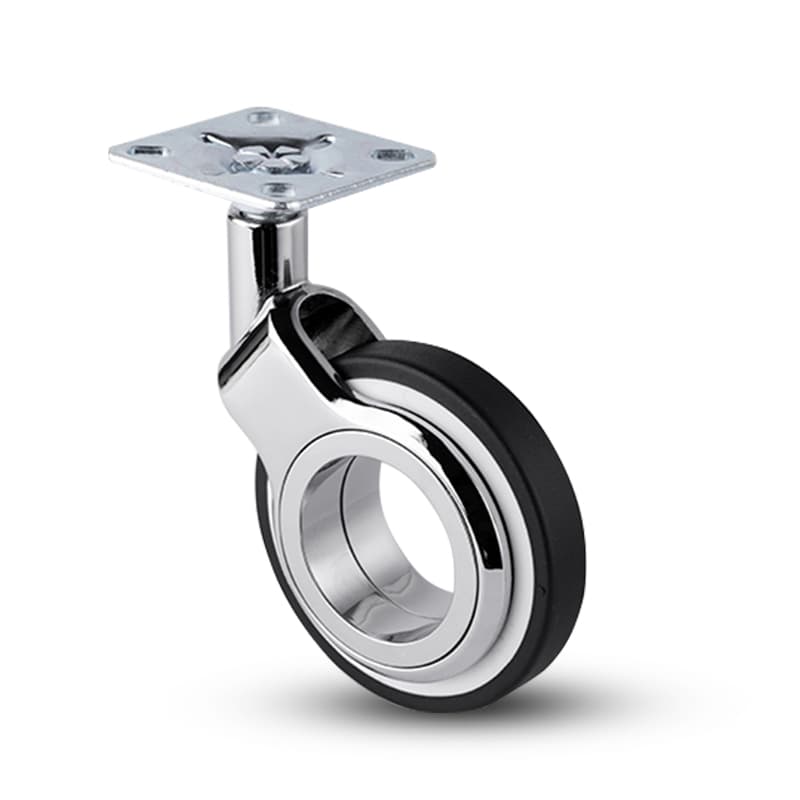

Plate
 | 75 | 60 |
|---|---|---|
 | 107 | 94 |
 | 26 | 25 |
| FITTING | 47x47x2.5 | 47x47x2.5 |
 | 70 | 60 |
| BEARING |  | |
 | Download File | Download File |
| | | FITTING | | BEARING | |
|---|---|---|---|---|---|---|
| 75 | 107 | 26 | 47x47x2.5 | 70 | | Download File |
| 60 | 94 | 25 | 47x47x2.5 | 60 | | Download File |

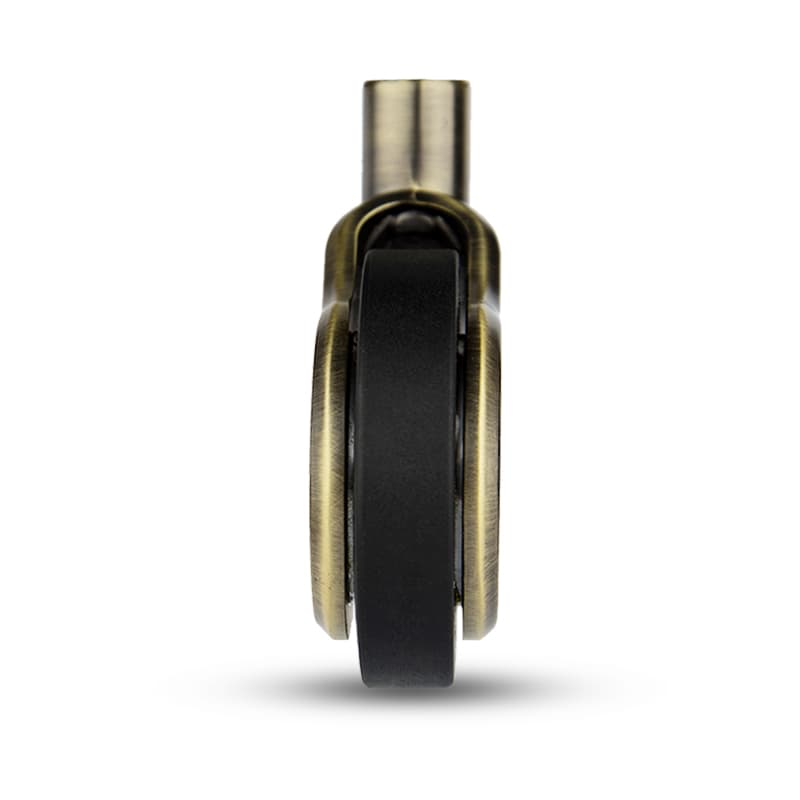

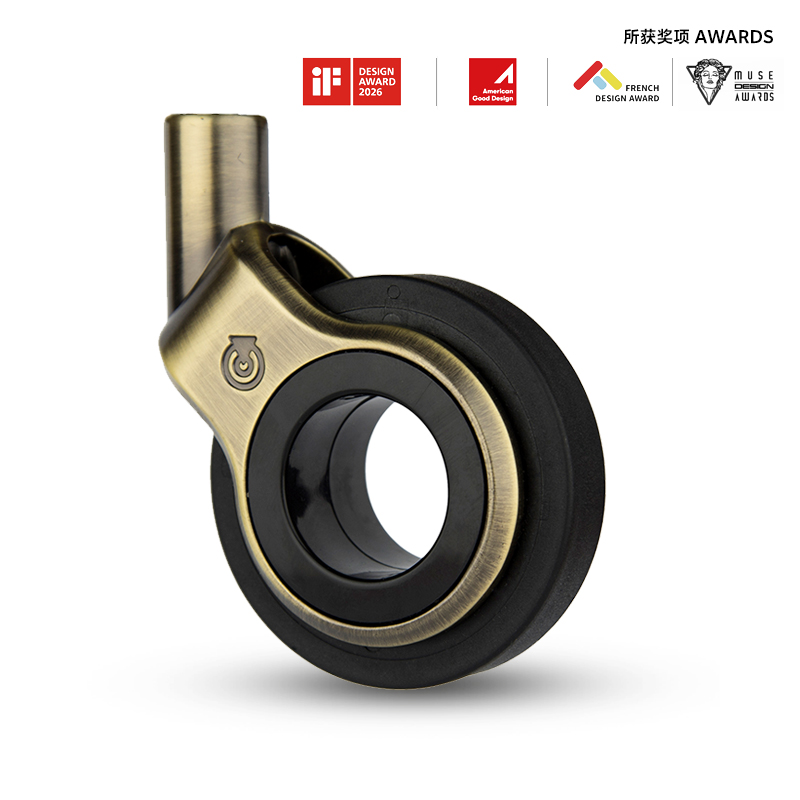

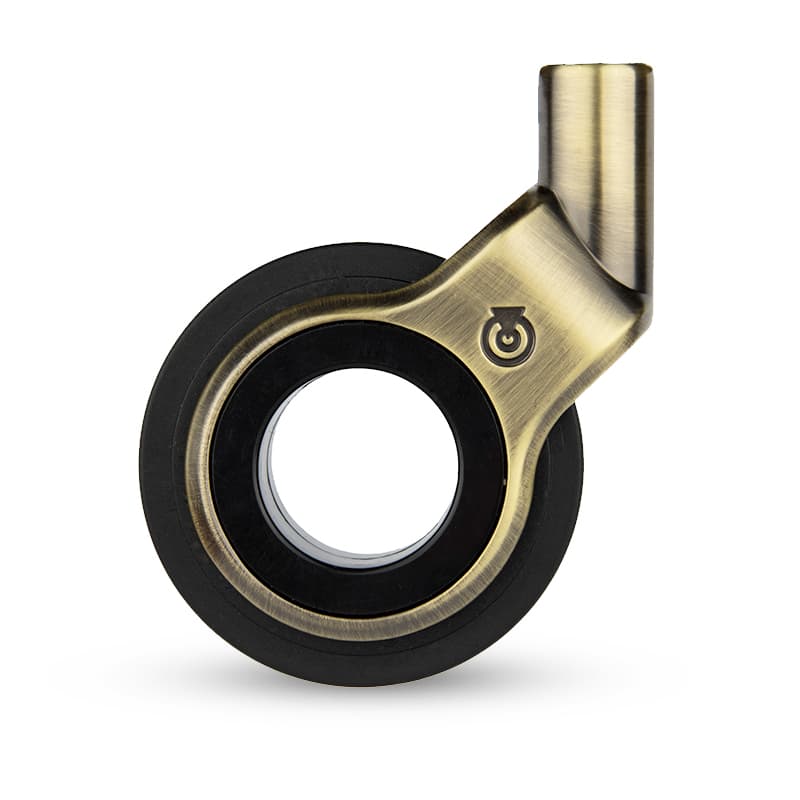

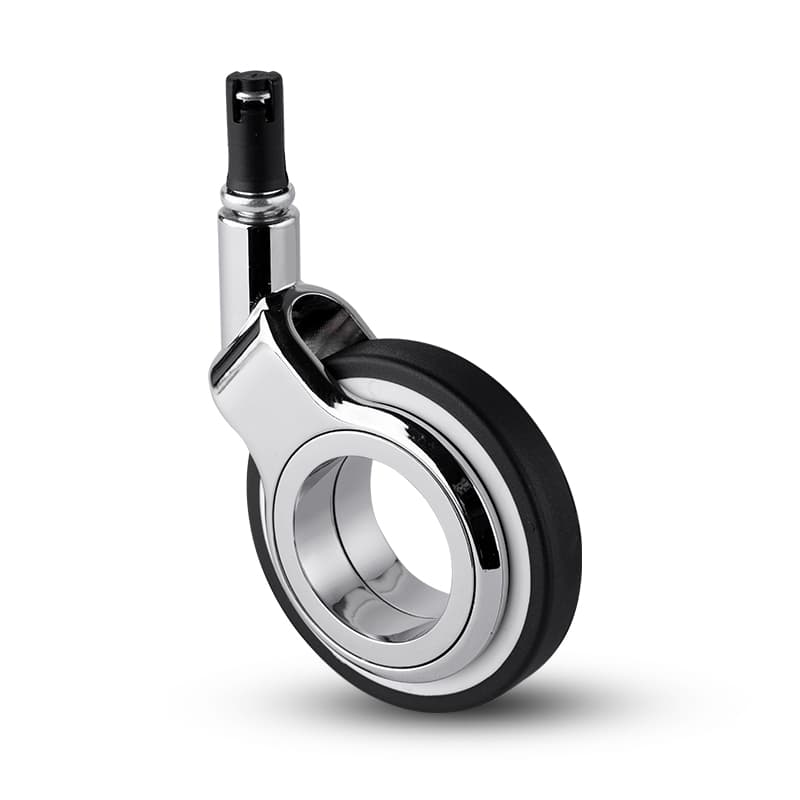

OLYM
Designer Collection60mm75mm
Key Attributes
Product Diameter
75MM/60MM
Material Description
Zinc alloy ; PA+TPU
Application Range

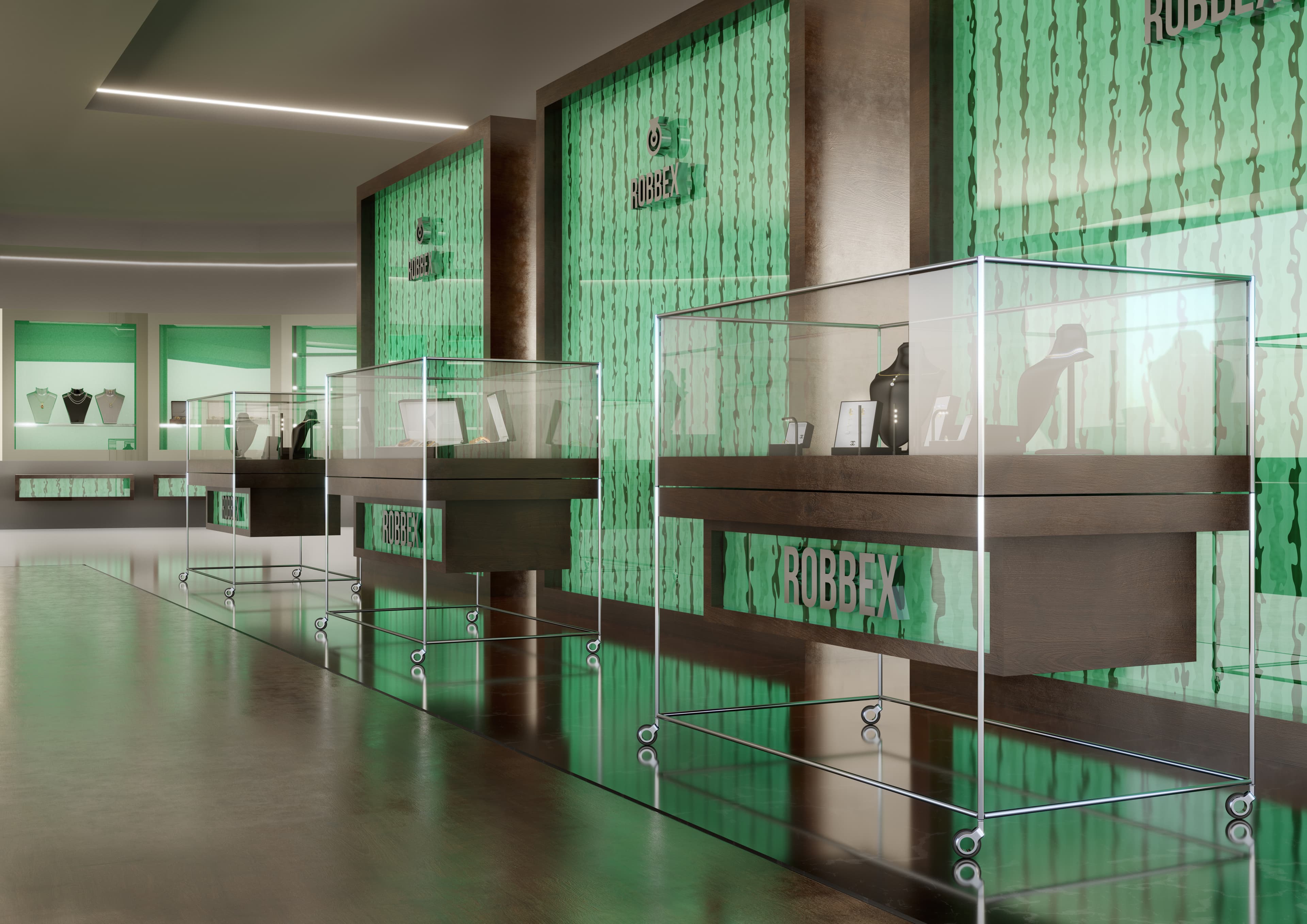

Home;Shop
Product Standards
EN12528 ANSI/BIFMA X5.1
Resources
Specifications

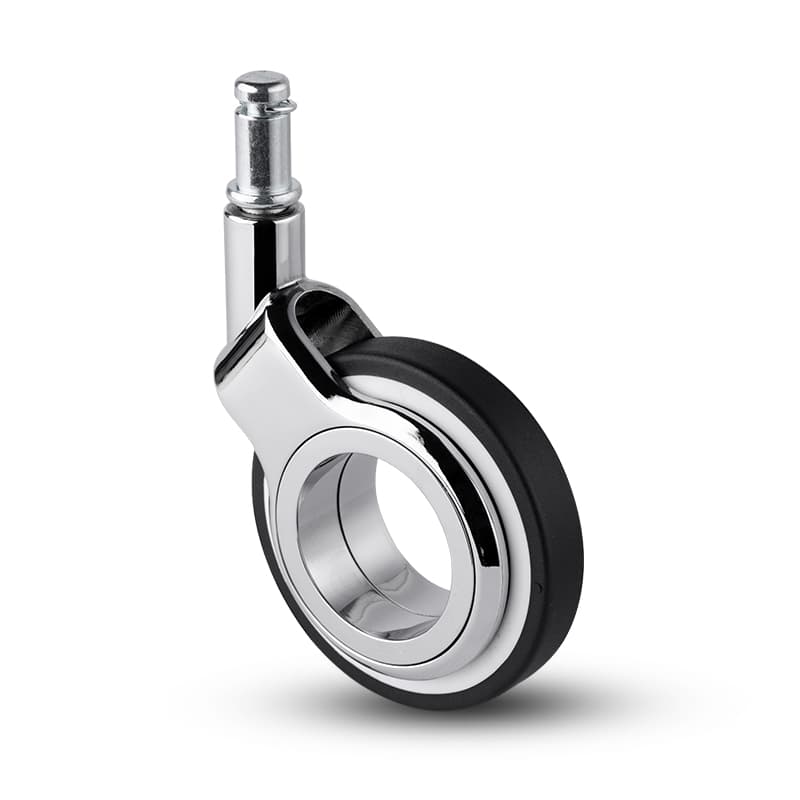

Pin
| 75 | 60 |
|---|---|---|
| 100 | 87.5 |
| 26 | 25 |
| FITTING | Ø11x22 | Ø11x22 |
| 70 | 60 |
| BEARING | | |
| Download File | Download File |
| | | FITTING | | BEARING | |
|---|---|---|---|---|---|---|
| 75 | 100 | 26 | Ø11x22 | 70 | | Download File |
| 60 | 87.5 | 25 | Ø11x22 | 60 | | Download File |

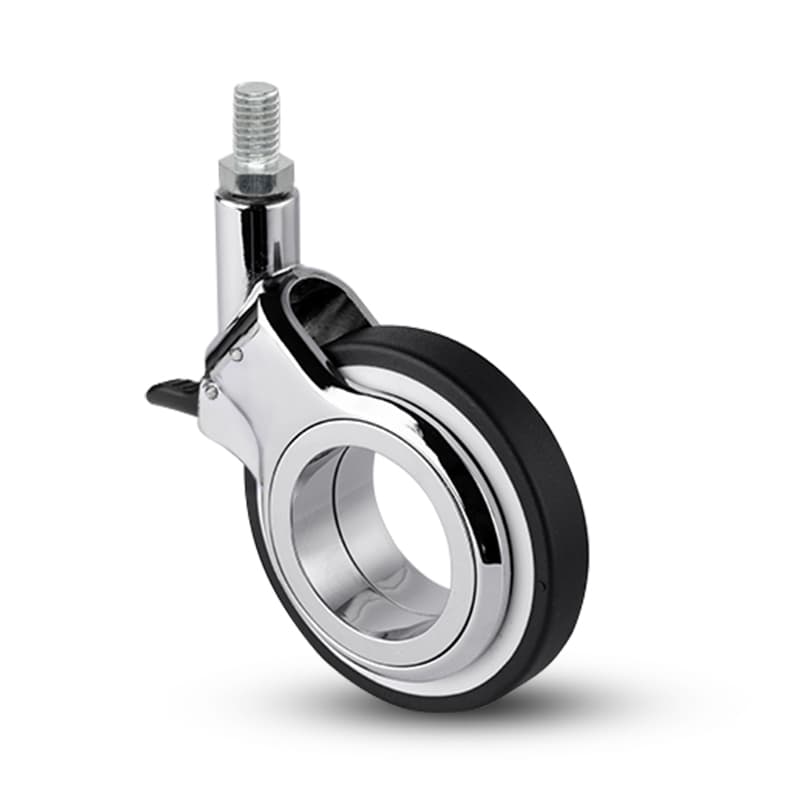

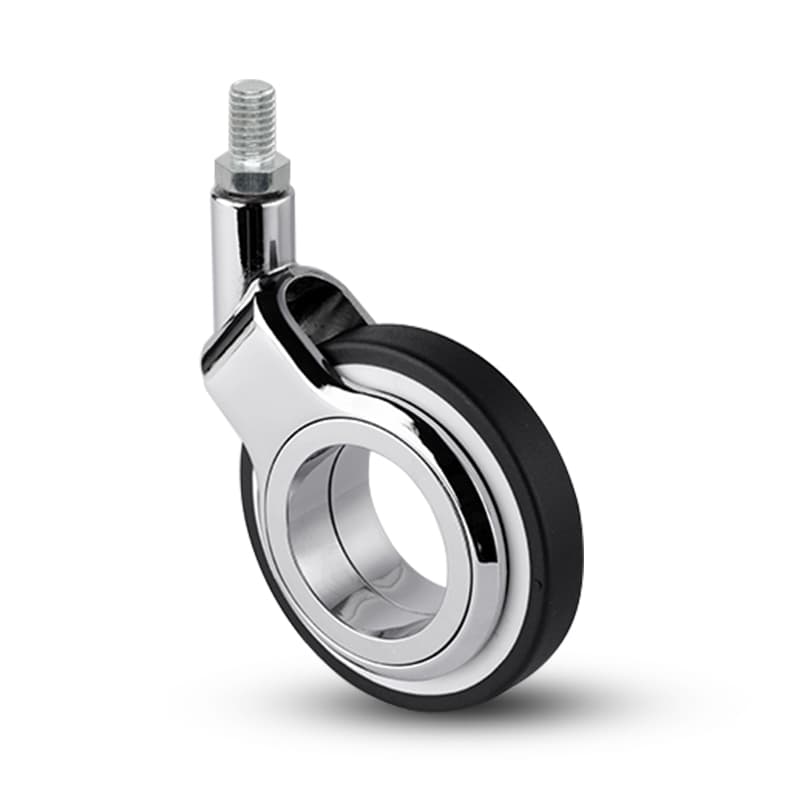

Threaded bolt
| 75 | 60 |
|---|---|---|
| 102 | 89.5 |
| 26 | 25 |
| FITTING | M10x15 | M10x15 |
| 70 | 60 |
| BEARING | | |
| Download File | Download File |
| | | FITTING | | BEARING | |
|---|---|---|---|---|---|---|
| 75 | 102 | 26 | M10x15 | 70 | | Download File |
| 60 | 89.5 | 25 | M10x15 | 60 | | Download File |
