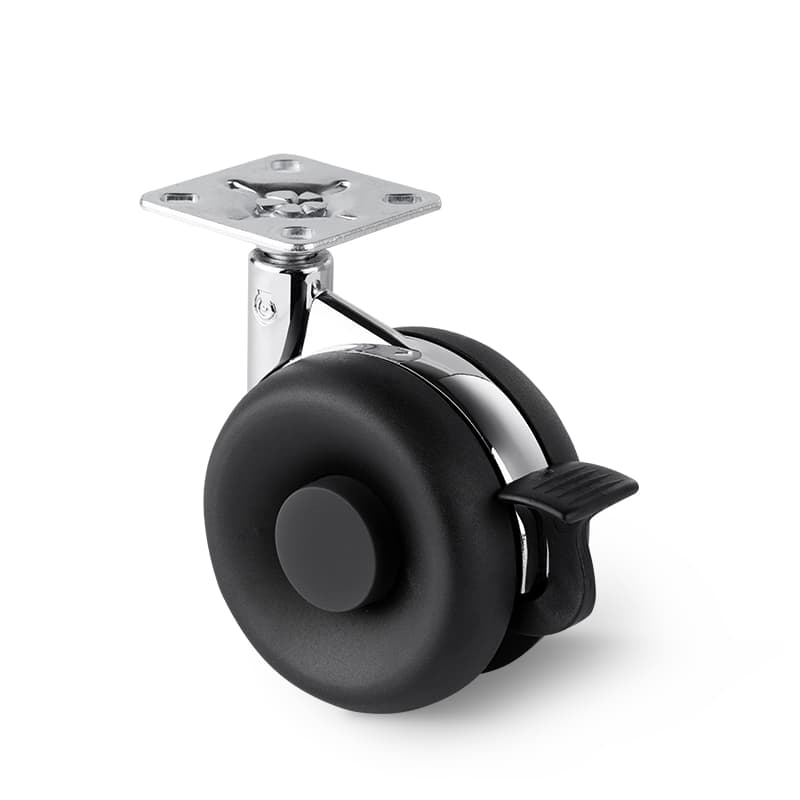

Plate
 | 75 | 60 |
|---|---|---|
 | 101.5 | 82 |
 | 47 | 41.5 |
| FITTING | 47x47x2.5 | 47x47x2.5 |
 | 80 | 60 |
| BEARING | 〓 | 〓 |
 | Download File | Download File |
| | | FITTING | | BEARING | |
|---|---|---|---|---|---|---|
| 75 | 101.5 | 47 | 47x47x2.5 | 80 | 〓 | Download File |
| 60 | 82 | 41.5 | 47x47x2.5 | 60 | 〓 | Download File |

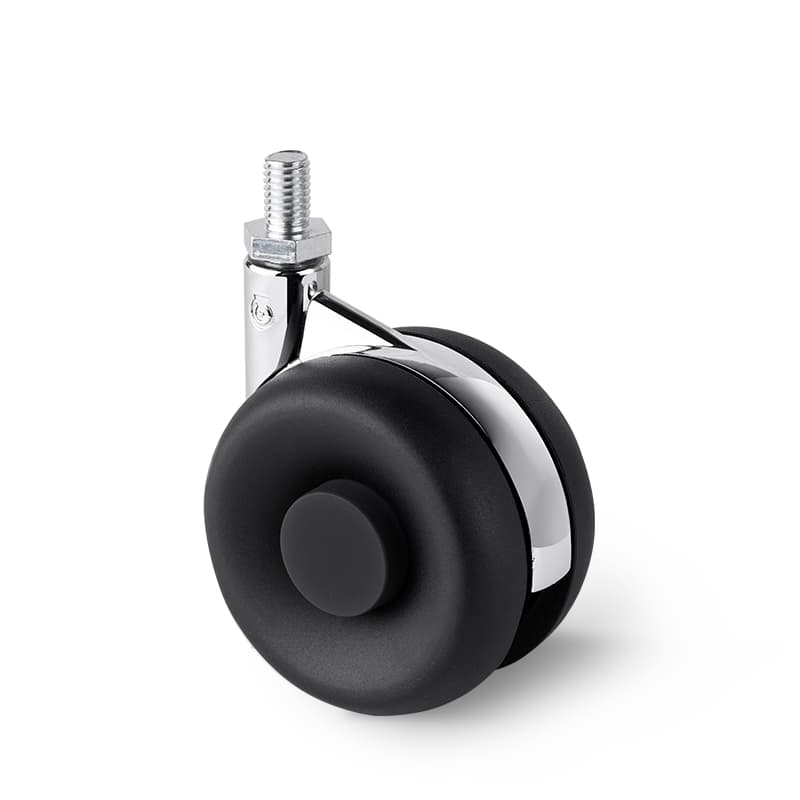

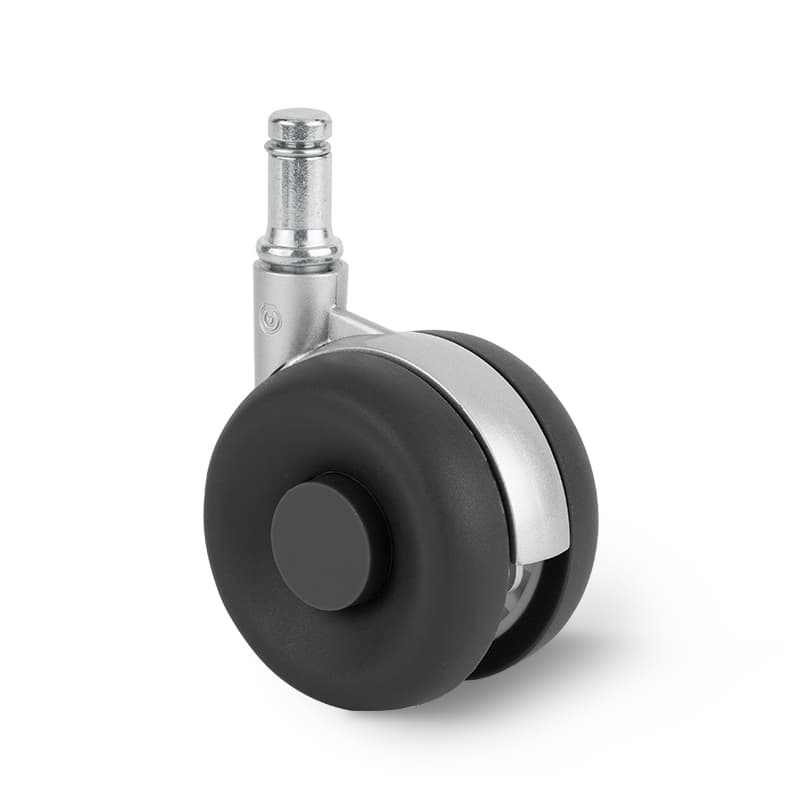

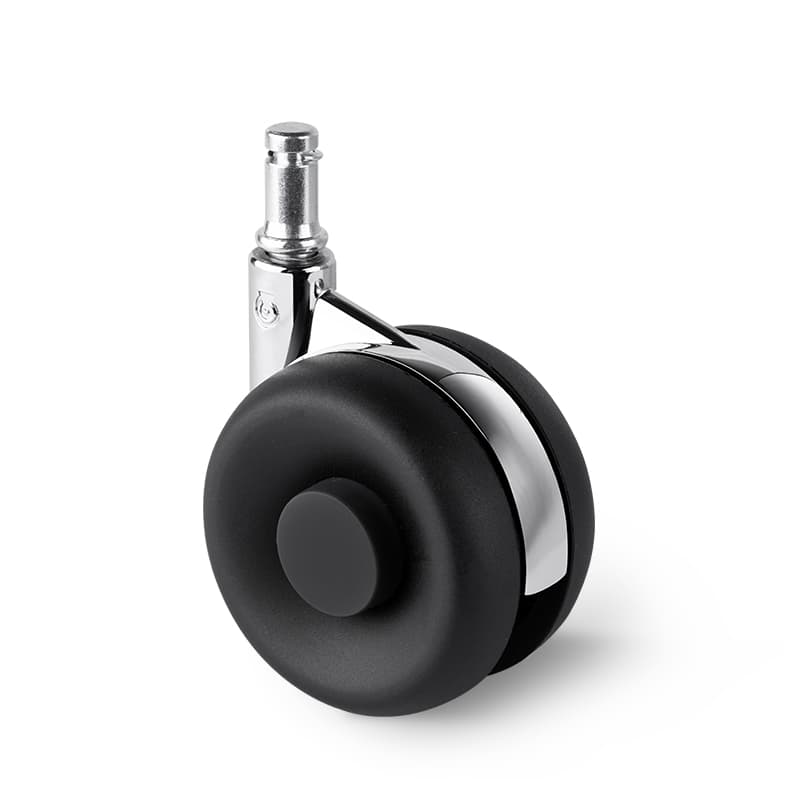

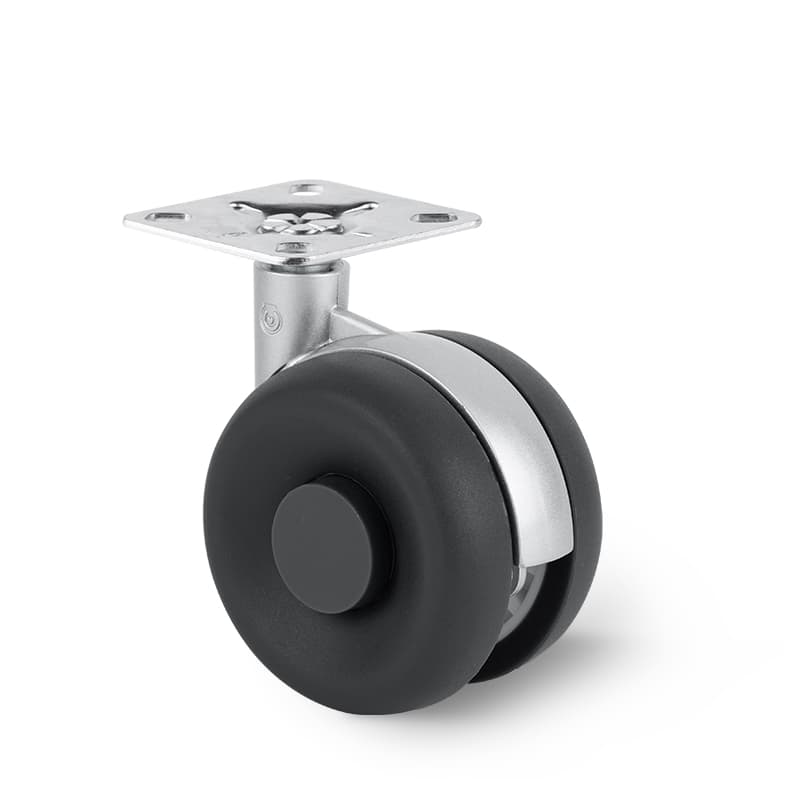

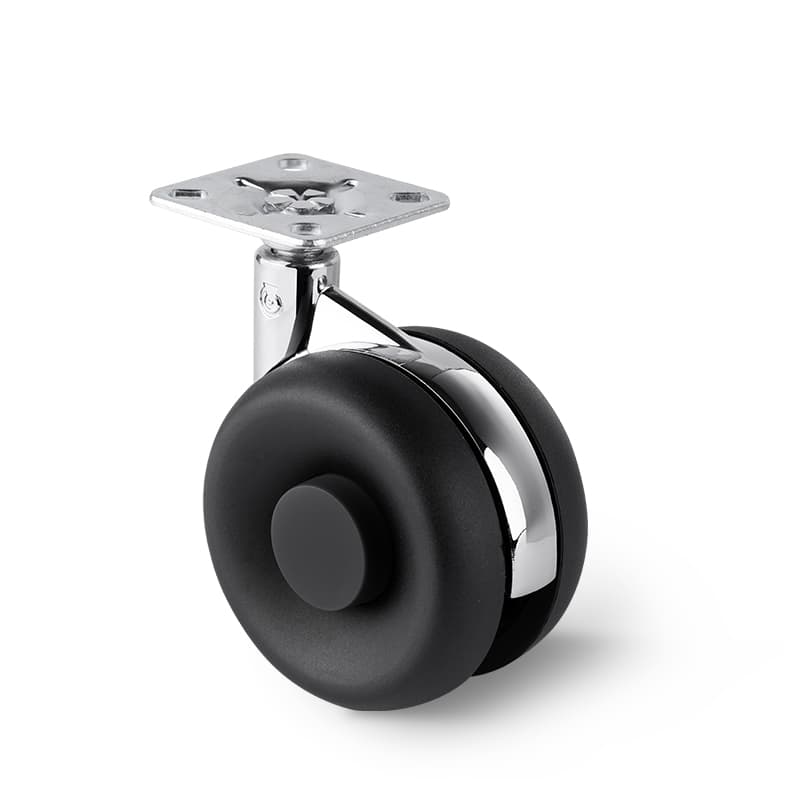

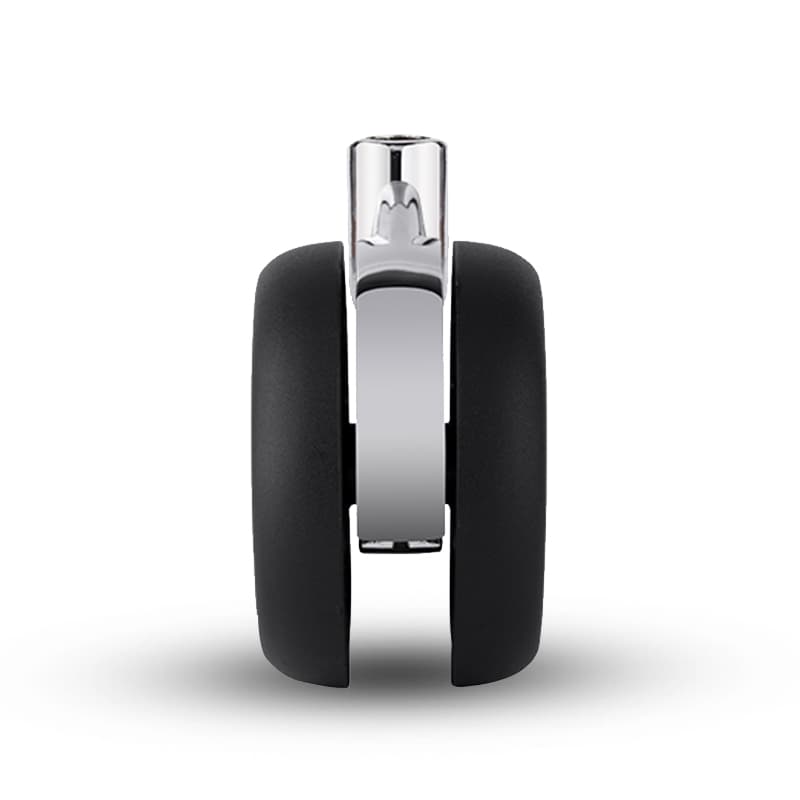

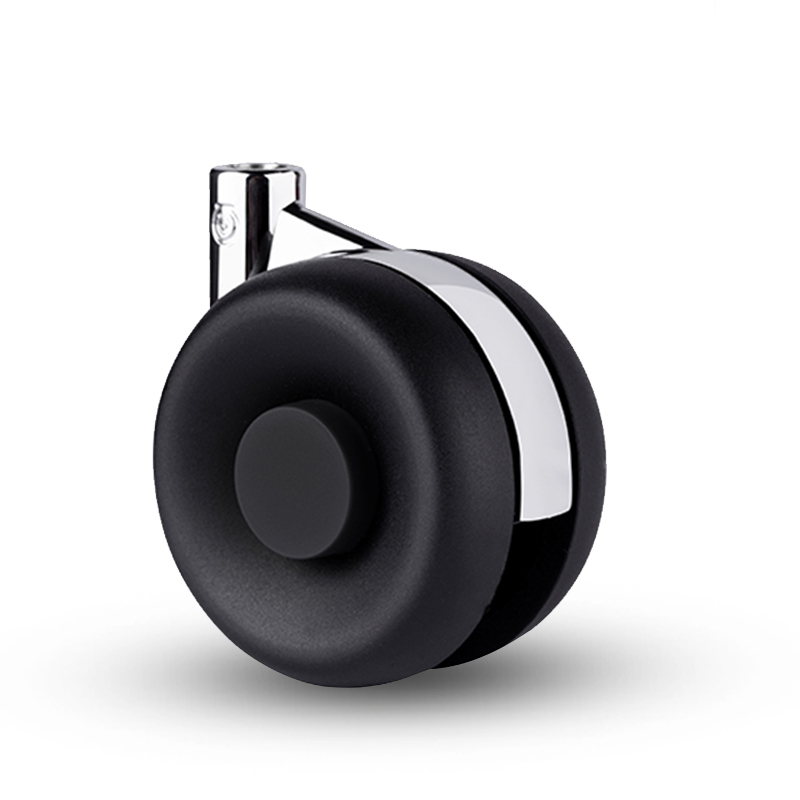

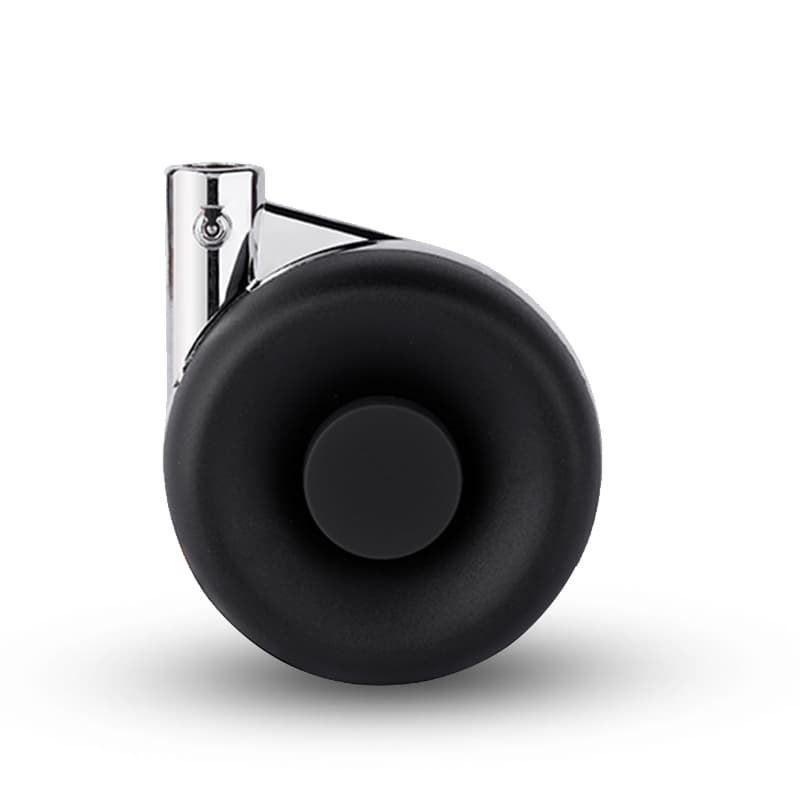

LAIA (Zinc alloy)
Designer Collection60mm75mm
Key Attributes
Product Diameter
60MM/75MM
Material Specification
Zinc alloy ; PA+TPU/ PP+TPE
Application Range
Shop;Home
Product Standard
EN12528 ANSI/BIFMA X5.1
Resources
Specifications

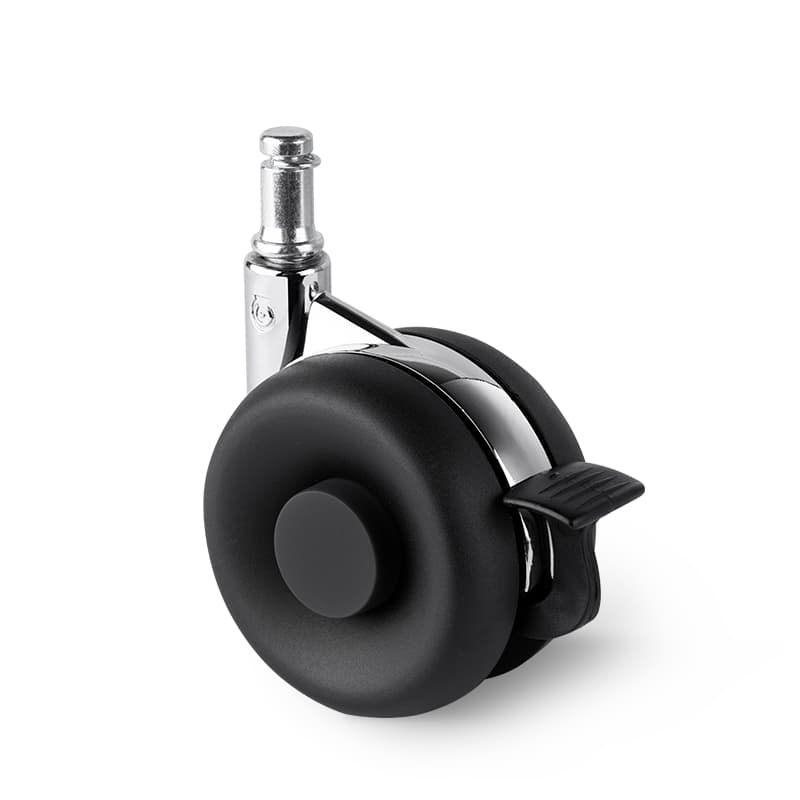

Pin
| 75 | 60 |
|---|---|---|
| 93.5 | 75 |
| 47 | 41.5 |
| FITTING | Ø11x22 | Ø11x22 |
| 80 | 60 |
| BEARING | 〓 | 〓 |
| Download File | Download File |
| | | FITTING | | BEARING | |
|---|---|---|---|---|---|---|
| 75 | 93.5 | 47 | Ø11x22 | 80 | 〓 | Download File |
| 60 | 75 | 41.5 | Ø11x22 | 60 | 〓 | Download File |

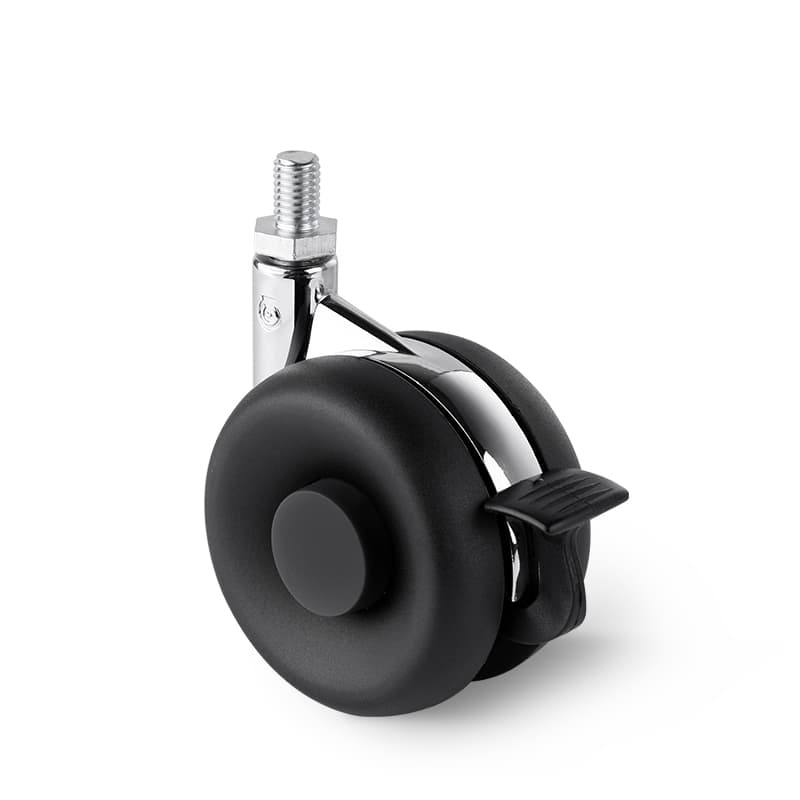

Threaded bolt
| 75 | 60 |
|---|---|---|
| 95.5 | 77 |
| 47 | 41.5 |
| FITTING | M10x15 | M8x15 |
| 80 | 60 |
| BEARING | 〓 | 〓 |
| Download File | Download File |
| | | FITTING | | BEARING | |
|---|---|---|---|---|---|---|
| 75 | 95.5 | 47 | M10x15 | 80 | 〓 | Download File |
| 60 | 77 | 41.5 | M8x15 | 60 | 〓 | Download File |

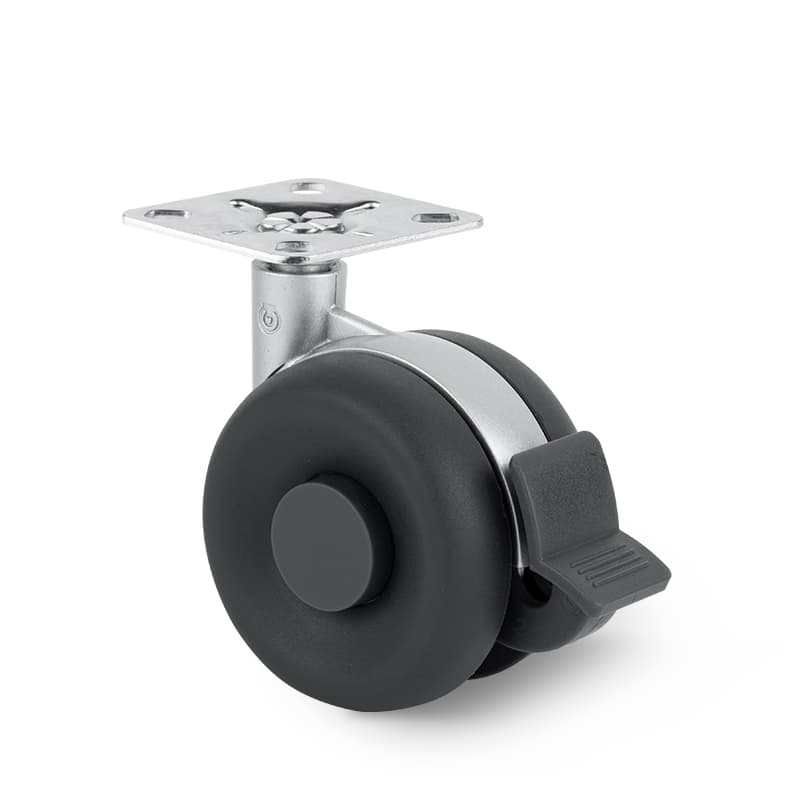

Plate
| 75 | 60 |
|---|---|---|
| 101.5 | 82 |
| 47 | 41.5 |
| FITTING | 47x47x2.5 | 47x47x2.5 |
| 80 | 60 |
| BEARING | 〓 | 〓 |
| Download File | Download File |
| | | FITTING | | BEARING | |
|---|---|---|---|---|---|---|
| 75 | 101.5 | 47 | 47x47x2.5 | 80 | 〓 | Download File |
| 60 | 82 | 41.5 | 47x47x2.5 | 60 | 〓 | Download File |

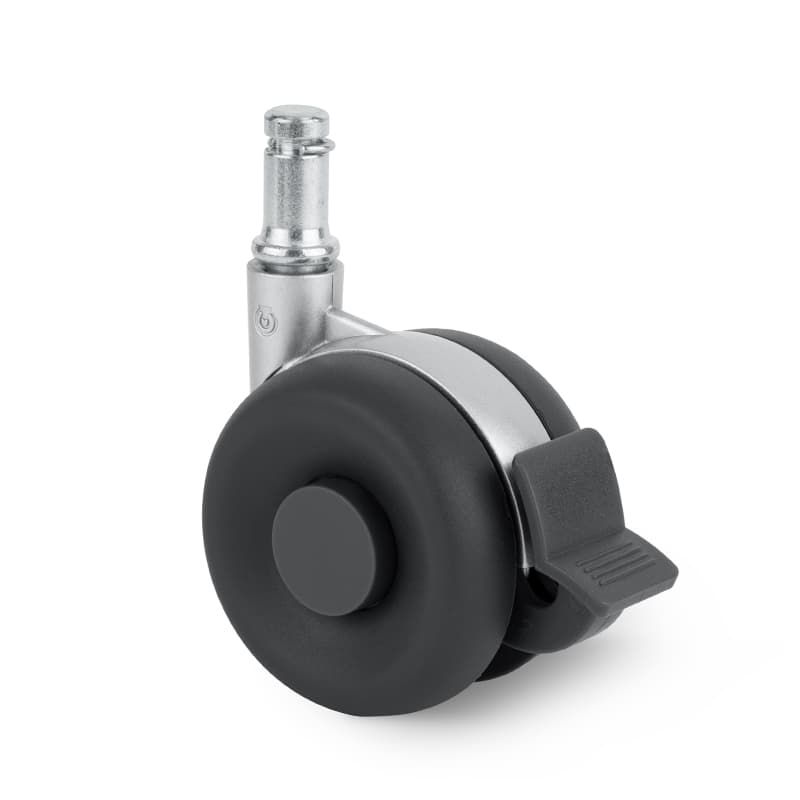

Pin
| 75 | 60 |
|---|---|---|
| 93.5 | 75 |
| 47 | 41.5 |
| FITTING | Ø11x22 | Ø11x22 |
| 80 | 60 |
| BEARING | 〓 | 〓 |
| Download File | Download File |
| | | FITTING | | BEARING | |
|---|---|---|---|---|---|---|
| 75 | 93.5 | 47 | Ø11x22 | 80 | 〓 | Download File |
| 60 | 75 | 41.5 | Ø11x22 | 60 | 〓 | Download File |

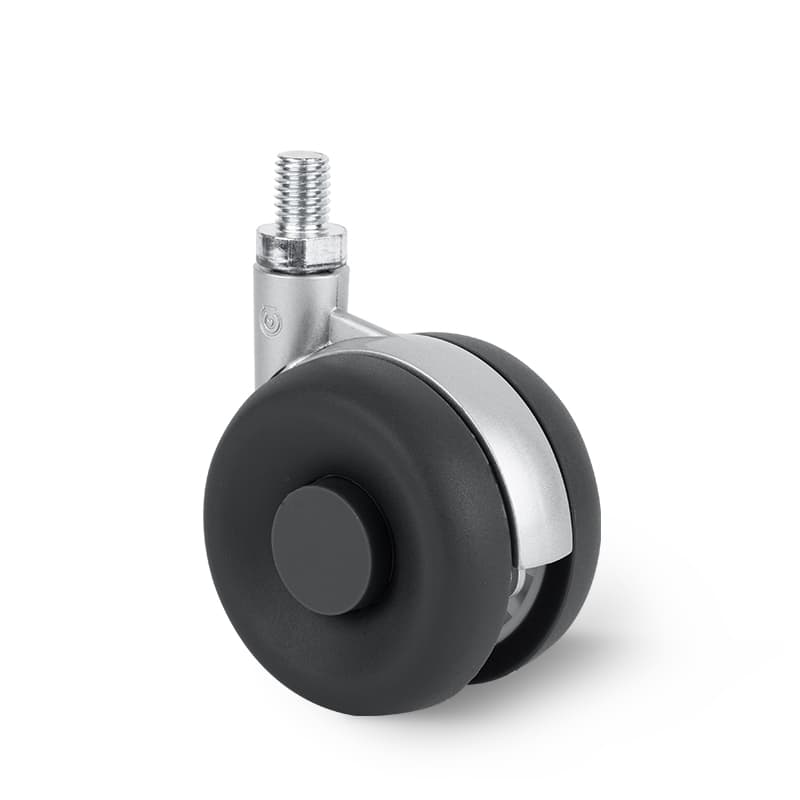

Threaded bolt
| 75 | 60 |
|---|---|---|
| 95.5 | 77 |
| 47 | 41.5 |
| FITTING | M10x15 | M8x15 |
| 80 | 60 |
| BEARING | 〓 | 〓 |
| Download File | Download File |
| | | FITTING | | BEARING | |
|---|---|---|---|---|---|---|
| 75 | 95.5 | 47 | M10x15 | 80 | 〓 | Download File |
| 60 | 77 | 41.5 | M8x15 | 60 | 〓 | Download File |
