Product Diameter
100mm/75mm/60mm
Material Description
Zinc alloy ; PA+TPU/PP+TPE
Application Scope
Home;Office
Product Standard
EN12528 ANSI/BIFMA X5.1
 | 100 | 75 | 60 |
|---|---|---|---|
 | 123 | 101 | 82.5 |
 | 46 | 37.4 | 37 |

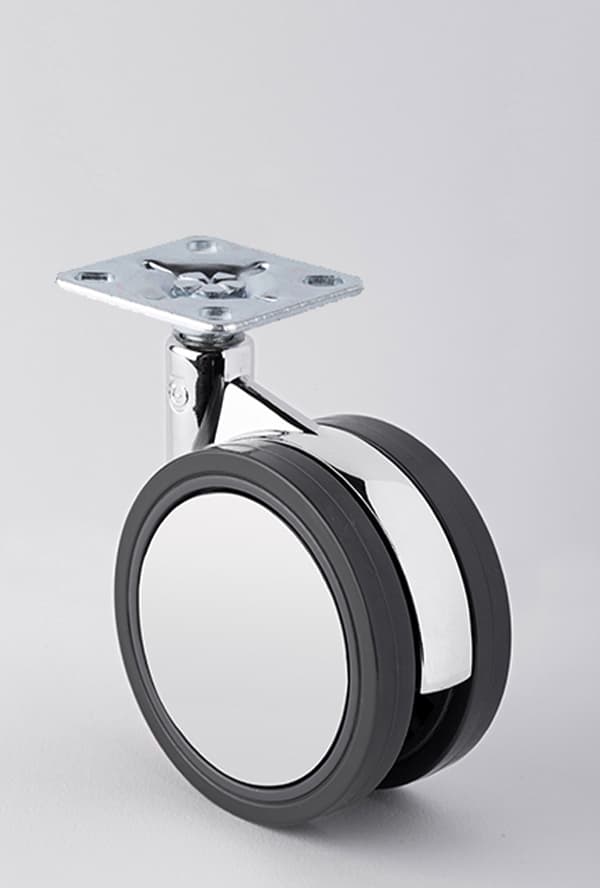

| FITTING | 80x60x3 | 47x47x2.5 | 47x47x2.5 |
 | 90 | 80 | 65 |
| BEARING | 〓 | 〓 | 〓 |
 | Download File | Download File | Download File |
| | | FITTING | | BEARING | |
|---|---|---|---|---|---|---|
| 100 | 123 | 46 | 80x60x3 | 90 | 〓 | Download File |
| 75 | 101 | 37.4 | 47x47x2.5 | 80 | 〓 | Download File |
| 60 | 82.5 | 37 | 47x47x2.5 | 65 | 〓 | Download File |
| 75 | 60 |
|---|---|---|
| 93 | 74.5 |
| 37 | 37 |
| FITTING | Ø11x22 | Ø11x22 |
| 80 | 65 |
| BEARING | 〓 | 〓 |
| Download File | Download File |
| | | FITTING | | BEARING | |
|---|---|---|---|---|---|---|
| 75 | 93 | 37 | Ø11x22 | 80 | 〓 | Download File |
| 60 | 74.5 | 37 | Ø11x22 | 65 | 〓 | Download File |
| 100 | 75 | 60 |
|---|---|---|---|
| 116 | 95 | 76.5 |
| 46 | 37 | 37 |

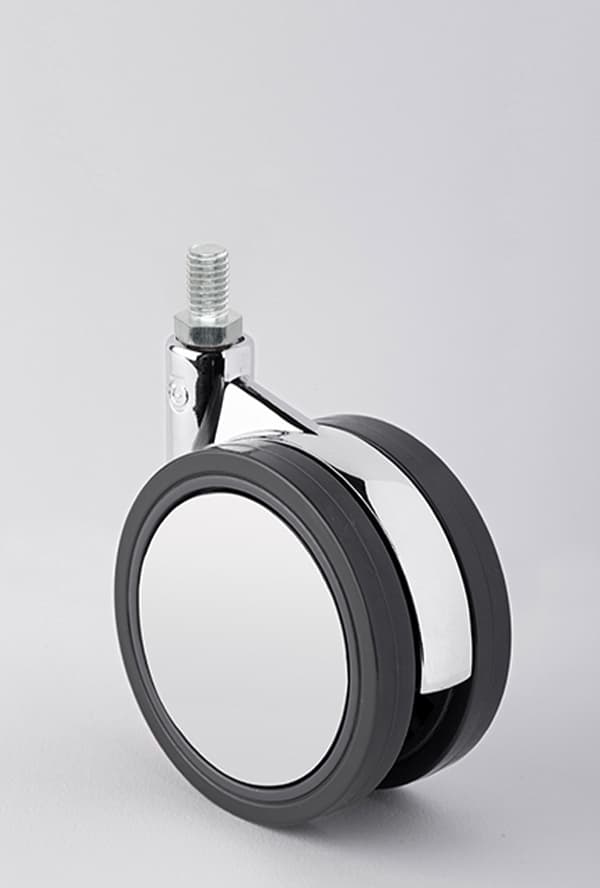

| FITTING | M10x25 | M10x15 | M8x15 |
| 90 | 80 | 65 |
| BEARING | 〓 | 〓 |  |
| Download File | Download File | Download File |
| | | FITTING | | BEARING | |
|---|---|---|---|---|---|---|
| 100 | 116 | 46 | M10x25 | 90 | 〓 | Download File |
| 75 | 95 | 37 | M10x15 | 80 | 〓 | Download File |
| 60 | 76.5 | 37 | M8x15 | 65 | | Download File |
